| Allmänt |

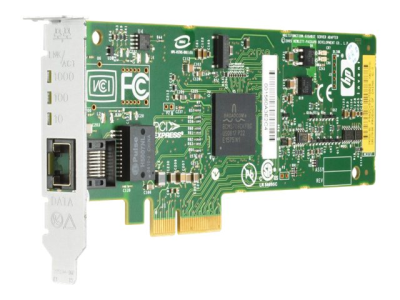

| Typ av enhet | Nätverksadapter |
| Gränssnittstyp (buss) | PCI Express x4 |
| Version av PCI-specifikation | PCI-X 1.0a |
| Nätverk |
| Portar | Gigabit Ethernet |
| Anslutningsteknik | Kabelansluten |
| Typ av kablage | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Datalänkprotokoll | 10Mb LAN, 100Mb LAN, GigE |
| Dataöverföringshastighet | 1 Gbps |
| Nätverks/transportprotokoll | TCP/IP, iSCSI |
| Protokoll för administration på distans | SNMP |
| Funktioner | Flödeskontroll, network fault tolerance (NFT), transmit load balancing (TLB), TCP/IP-avlastning |
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p |
| Processor / Minne |
| Processor | 1 x BCM5708 - Broadcom |
| RAM | 92 KB |
| Expansion/Anslutning |
| Gränssnitt | 1 x 1000Base-T - RJ-45 |
| Kompatibla kortplatser | PCI Express x4 |
| Diverse |
| Inkluderade tillbehör | Hållare för låg version |
| Standarder som följs | FCC Klass B-certifierade, CSA, VCCI, EN55022, ICES-003, EN55024, UL 60950, CISPR 22, EMC, MIC, AS/NZS 3548, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1 |
| Programvara / Systemkrav |
| Medföljande programvara | Drivrutiner och hjälpprogram |
| Operativsystem erfordras | Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 3, SuSE Linux Enterprise Server 9 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition |
| Dimensioner och vikt |
| Djup | 16.8 cm |
| Höjd | 6.4 cm |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 10 - 90% |
| Kompatibilitetsinformation |
| Designat för | HPE ProLiant DL120 G6, DL120 G6 Base, DL120 G6 Performance, DL120 G7, DL120 G7 Base, DL120 G7 Entry, DL120 G7 Performance, DL160 G6, DL160 G6 Special Server, DL160se G6, DL165 G6, DL165 G7, DL165 G7 Performance, DL165 G7 Special Server, DL170h G6, DL180 G6, DL180 G6 Special Server, DL320 G4 SAS VPN Server, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL360 G7 Special Server, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL370 G6 Special Server, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL385 G6, DL385 G6 Base, DL385 G6 Entry, DL385 G6 High Performance, DL385 G6 Performance, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G5 Highly Serviceable Tower, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G6, DL585 G6 Base, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL785 G6, DL785 G6 Base, DL785 G6 Performance, ML110 G6, ML110 G7, ML110 G7 Base, ML110 G7 Entry, ML110 G7 Performance, ML150 G6, ML150 G6 Base, ML150 G6 Entry, ML150 G6 Performance, ML330 G6, ML330 G6 Base, ML330 G6 Entry, ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry, ML370 G6 Special Server, SL160s G6, SL160z G6, SL165s G7, SL165z G7, SL170z G6, SL2x170z G6
HPE StorageWorks All-in-One Storage System 1200r 12TB SATA Model, 1200r 2.4TB SAS Model, 1200r 3.6TB SAS Model, 1200r 5.4TB SAS Model, 1200r 6TB SATA Model, 1200r 9TB SATA Model
HPE StorageWorks Network Storage Gateway X3800 G2
HPE StorageWorks Network Storage System X1400 G2, X1500 G2, X1600 G2, X1800 G2 |
|
