| Allmänt |

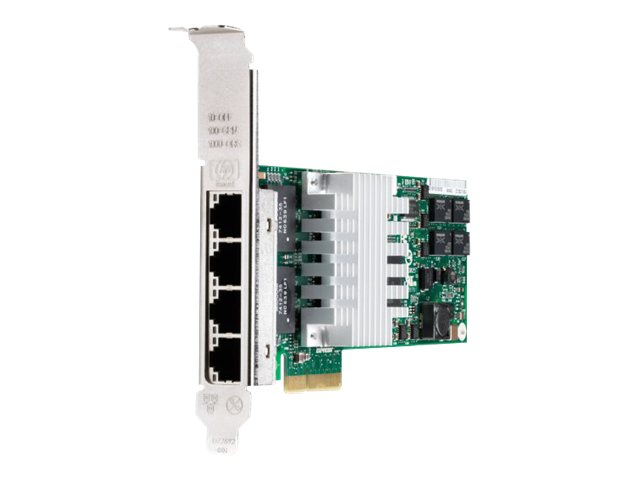

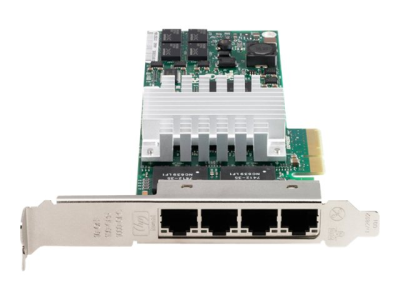

| Typ av enhet | Nätverksadapter |
| Formfaktor | Instickskort - låg |
| Gränssnittstyp (buss) | PCI Express x4 |
| Version av PCI-specifikation | PCIe 1.0a |
| Nätverk |
| Portar | Gigabit Ethernet x 4 |
| Anslutningsteknik | Kabelansluten |
| Typ av kablage | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Datalänkprotokoll | 10Mb LAN, 100Mb LAN, GigE |
| Dataöverföringshastighet | 1 Gbps |
| Statusindikatorer | Länkaktivitet, portöverföringshastighet |
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p |
| Processor / Minne |
| Processor | 2 x 82571EB - Intel |
| RAM | 256 KB |
| Expansion/Anslutning |
| Gränssnitt | 4 x 1000Base-T - RJ-45 |
| Kompatibla kortplatser | 1 x PCI Express x4 |
| Diverse |
| Standarder som följs | UL, VCCI, EN 60950, EN55022, ICES-003, RRL, IEC 60950, EN55024, UL 60950, CISPR 22, EMC, MIC, AS/NZS 3548, FCC CFR47 Part 15, ACA |
| Programvara / Systemkrav |
| Operativsystem erfordras | SuSE Linux Enterprise Server, SunSoft Solaris 9, SCO OpenServer 5.0.7, Microsoft Windows Server 2003, UnixWare 7.1.3, Novell NetWare 6.5, Red Hat Enterprise Linux, UnixWare 7.1.4, SunSoft Solaris 10, SCO OpenServer 6, Novell Open Enterprise Server |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 10 - 90% |
| Kompatibilitetsinformation |
| Designat för | HPE ProLiant DL120 G6, DL120 G6 Base, DL120 G6 Performance, DL160 G5, DL160 G5p, DL160 G6, DL160 G6 Special Server, DL160se G6, DL165 G5 Special Server, DL165 G6, DL165 G7, DL165 G7 Special Server, DL170h G6, DL180 G5 Special Server, DL180 G6, DL180 G6 Special Server, DL185 G5 Special Server, DL320 G5p, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL360 G7 Special Server, DL365 G5 Base, DL365 G5 Entry, DL365 G5 High Efficiency, DL365 G5 Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL370 G6 Special Server, DL380 G5 x64 SAN Storage Server, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Entry, DL380 G7 Performance, DL385 G5, DL385 G5 Base, DL385 G5 Entry, DL385 G5 Performance, DL385 G5p Base, DL385 G5p High Performance, DL385 G6, DL385 G6 Base, DL385 G6 Entry, DL385 G6 High Performance, DL385 G6 Performance, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G5 Highly Serviceable Tower, DL585 G6, DL585 G6 Base, DL785 G5, DL785 G6, DL785 G6 Base, DL785 G6 Performance, DL980 G7, ML115 G5, ML150 G5, ML150 G6, ML150 G6 Base, ML150 G6 Entry, ML150 G6 Performance, ML310 G4 1TB Storage Server, ML310 G4 2TB Storage Server, ML310 G4 3TB Storage Server, ML310 G4 584 GB SAS Storage, ML310 G5, ML330 G6, ML330 G6 Base, ML330 G6 Entry, ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry, ML370 G6 Special Server, SL160s G6, SL160z G6, SL165z G7, SL170z G6, SL2x170z G6
HPE StorageWorks Network Storage Gateway X3800 G2
HPE StorageWorks Network Storage System X1400 G2, X1500 G2, X1600 G2, X1800 G2 |
|
